Aluminium Conveyors
C-Trak have expanded their product range to include the new light to medium weight aluminium conveyor for the versatile cost effective solution. Contact us now for a price.
AL5KG Light Slimline Aluminium Conveyor
Sleek in appearance for light weigh products up to 5kg in weight, the maximum length supplied is 3000mm. It comes with 38mm dia terminal rollers so it is suited to small products to be transferred from one process to another
The slim line design gives flexibility where space is limited. The drive is a shaft mounted geared motor and the belt is fully guided with the TrueTrack belt guidance system.

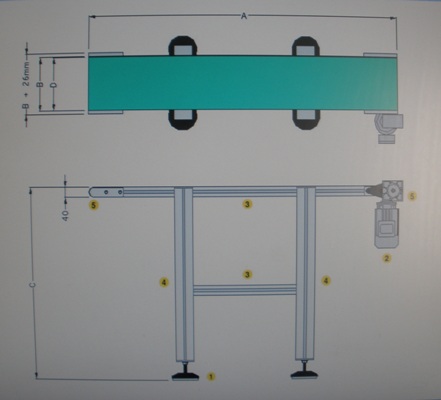

Technical Specification for Slimline Aluminium Conveyors
1 |
M14 thread with 80mm diameter foot , 2 off 11mm diameter fixing holes |
2 |
Shaft mounted geared motor(speed and torque to suit application) |
3 |
40mm × 40mm extruded aluminium profile with 4 off 10mm T slots |
4 |
80mm × 40mm extruded aluminium profile with 4 off 10mm T slots |
5 |
38mm diameter steel terminal roller |
A |
Conveyor length |
B |
Belt width + 4mm |
C |
Conveyor height +- 30mm adjustment |
D |
Belt width |
Maximum length: |
3 metres |
Belt width: |
36mm, 76mm, 116mm, 156mm. 196mm. 236mm and 276mm (others on request) |
Conveyor width: |
Belt width + 4mm |
Conveyor height: |
800mm +- 30mm adjustment (others on request) |
Drive type: |
Shart mounted geared motor |
Drive Power: |
0.16kw |
Voltage: |
240v 1ph 50Hz - 230v 3ph 50Hz - 415v 3ph 50hz |
Drive position: |
End as standard |
Maximum load: |
Up to 5 Kg/m |
Terminal rollers: |
38mm diameter steel terminal rollers |
Belt type: |
2 Ply PVC black or green as standard ( PU and Grip top, others on request) |
Bed construction |
Aluminium extrusion |
Belt speed: |
10m/min standard (options available from 4.2 to 20 m/min) |
Belt tracking: |
All belts are fitted with twin PU tracking profiles. |
Control options: |
Direct online stop start complete with overload |
| Variable speed stop start | |
| Production stop | |
| 24v DC Emergency stop | |
| 24v DC Emergency stop with safety relay | |
| Photo electric cell end stop control | |
| Foot switch | |
| Remote stop start | |
| Timed stop start | |
| Panel mounted PLC | |
Accessories |
Side Guides |
| End stop | |
| Castors |
AL10KG Light to Medium Aluminium Conveyors
This is conveyor is light / medium weight belt conveyor fabricated in light but strong alumiium extrusions. Driven by a 80mm dia motorised drum roller with a 80mm diameter terminal roller it has a product loading of 10Kg per metre.
The drive and terminal rollers are fitted into modular carriages which are easily removed for maintenance and fully adjustable. The belt is fully guided with the TrueTrack belt guidance system
AL25KG Medium Duty Aluminium Conveyors
This is our medium duty belt and can be used for various handling solutions when more strength is need. Manufactured from extruded aluminium ‘C’ profile with folded modular electro plated steel skid beds it gives a good combination of strength and versatility.
This aluminium conveyor is driven by a 113mm diameter motorised drum roller with a 113mm diameter terminal roller and has a product loading of 25kg per metre.
The drive and terminal rollers are fitted into modular carriages which are fully adjustable and easily removable for maintenance. The belt is fully guided with the TrueTrack belt guidance system.
